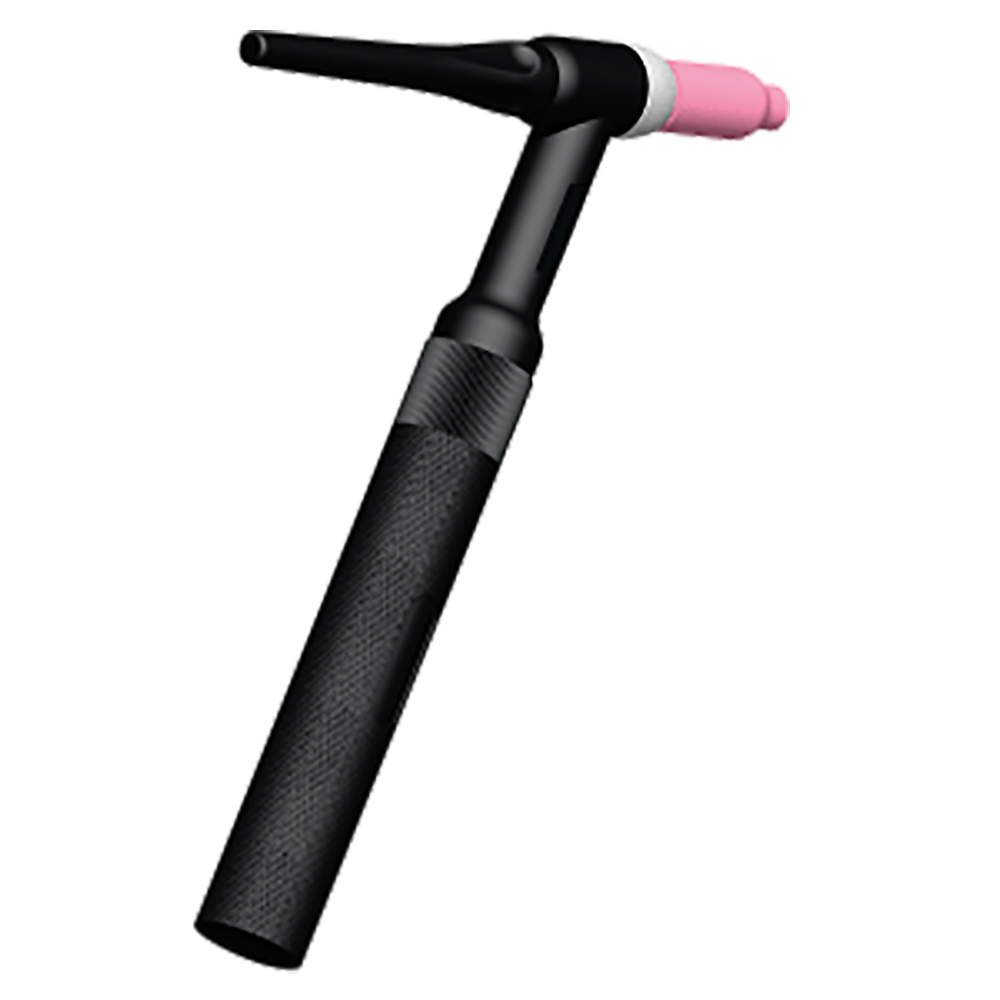

Achieve exceptional control and precision with the 9FV Air-Cooled TIG Welding Torch Package, designed for light to medium-duty TIG welding applications. Combining a lightweight design with dependable performance, this complete torch package is ideal for fabrication shops, automotive work, maintenance, and hobbyist welders.

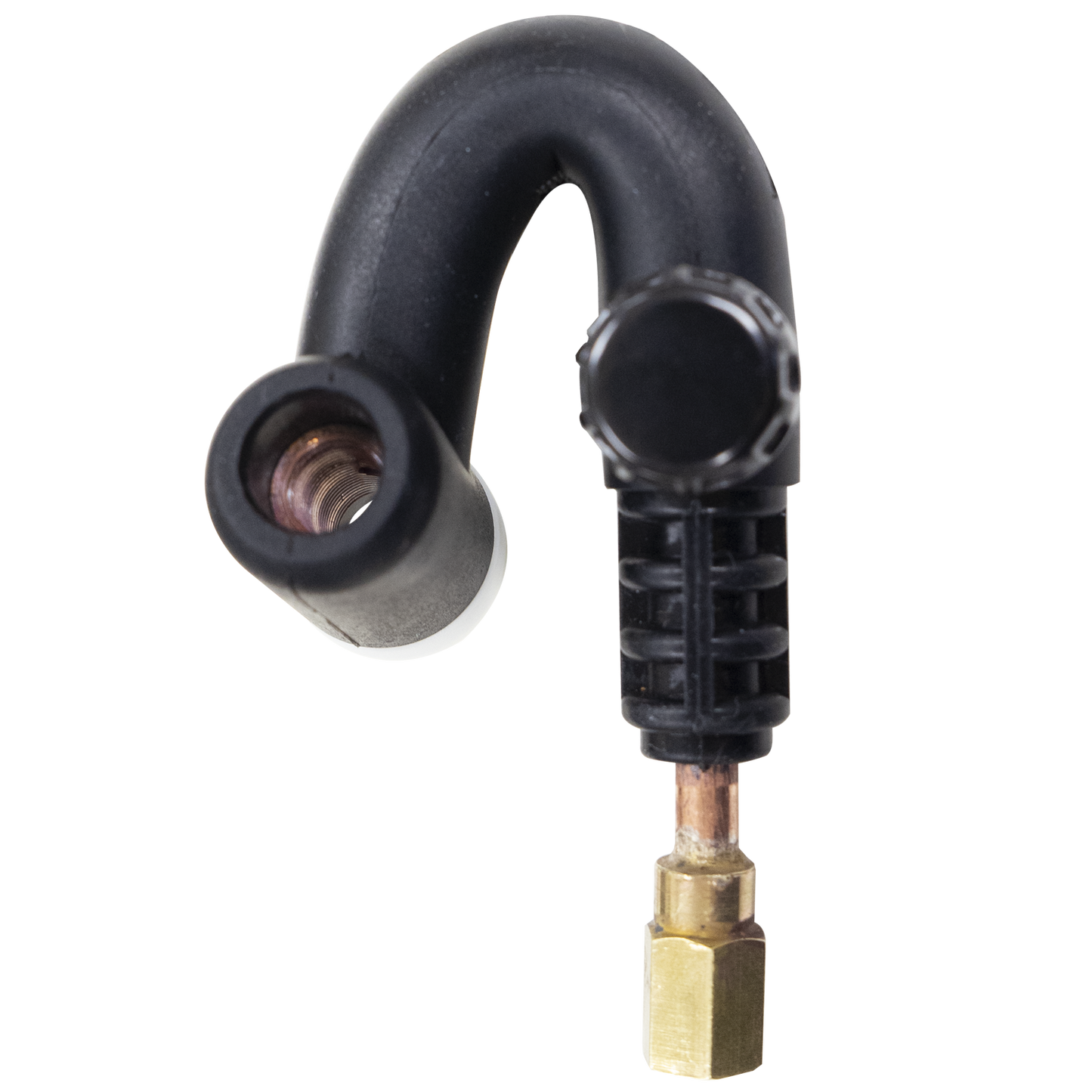

Rated at 125 Amps DC and 100 Amps AC at 60% duty cycle, the 9FV torch features a flexible torch head with an integrated gas valve, allowing greater access to difficult weld joints while providing convenient manual gas flow control when used with machines that do not have a built-in gas solenoid.

Built with premium copper current-carrying components and high-temperature silicone rubber insulation, this torch delivers excellent conductivity, cooler operation, and long-lasting durability. Compatible with standard 9 Series TIG consumables, replacement parts are easy to find and maintain.

Features

• Air-cooled 9FV TIG welding torch
• Flexible torch head with built-in gas valve
• 125A DC / 100A AC @ 60% Duty Cycle
• 12-foot cable assembly
• High-temperature silicone rubber cable insulation
• Premium copper current-carrying components
• Excellent flexibility and abrasion resistance
• Compatible with standard 9 Series TIG consumables
• Lightweight, ergonomic construction
• Ideal for light to medium-duty TIG welding

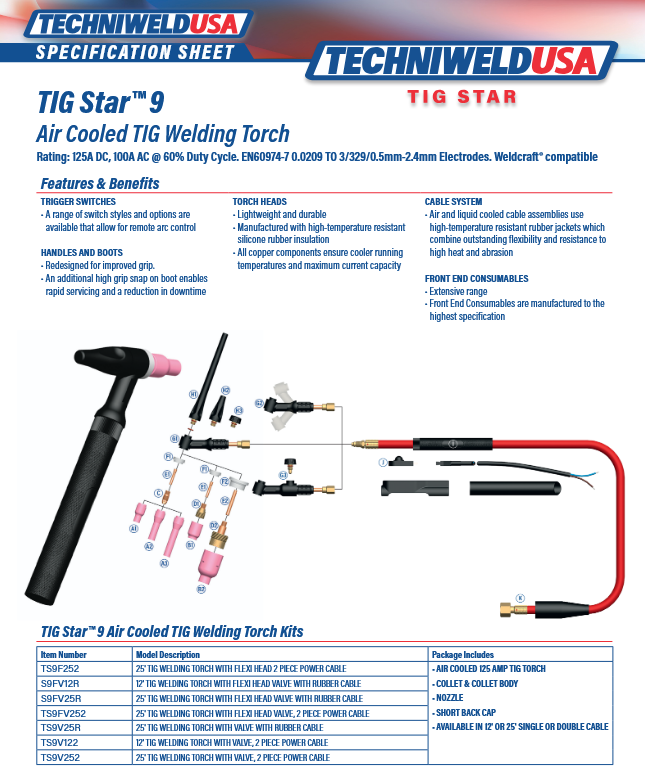

Specifications

Torch Series: 9FV

Cooling Type: Air-Cooled

Torch Head: Flexible with Gas Valve

Cable Length: 12 ft

Current Rating:

• 125A DC
• 100A AC

Duty Cycle: 60%

Electrode Capacity: 0.020"–3/32" (0.5–2.4 mm)

Insulation: High-Temperature Silicone Rubber

Consumable Compatibility: Standard 9 Series

Applications

Perfect for:

• TIG Welding
• Stainless Steel Fabrication
• Mild Steel Welding
• Aluminum Welding (AC)
• Automotive Fabrication
• Motorsport Applications
• General Fabrication
• Industrial Maintenance
• Home and Hobby Welding

What's Included

• 9FV Air-Cooled TIG Torch
• 12 ft Cable Assembly
• Flexible Gas Valve Torch Head
• Ready for Standard 9 Series Consumables

Why Choose This TIG Torch?

• Flexible torch head improves access in tight spaces
• Built-in gas valve provides convenient manual gas control
• Lightweight design reduces operator fatigue
• Premium copper components maximize conductivity and current capacity
• Air-cooled system eliminates the need for a water cooler
• Compatible with widely available 9 Series consumables and replacement parts
