USA Welding Supply

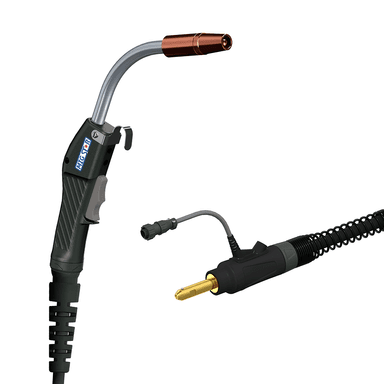

Mig Star 400 AMP Air Cooled 25 ft. MIG Gun, Miller Compatible Back-End, and Tweco Compatible Front-End Consumables
Mig Star 400 AMP Air Cooled 25 ft. MIG Gun, Miller Compatible Back-End, and Tweco Compatible Front-End Consumables
SKU:84308812385
MIG Gun MSM40025
- Designed with Ergonomic Handle, Hyperflex® Cable Systems, and Spring Loaded Guns
- AMP Rating: 400A CO², 350A Mixed Gas @ 60% Duty Cycle
- Liner Diameter: .035"-.045" (0.9-1.2mm) Wire Size: .030"-.045" (0.76mm-1.43mm)
- Cable length: 25 ft. Neck Angle: 60° Contact Tip: 14-45 (.045")
- Compatible with Miller® Cricket, XL, Challenger, Sidekick, XL, Millermatic 90, 120, 130, 135, 140, 141, 150, 175, 180, 185, 190, 200, 210, 211, 212, 250, 250x, 251, 252, 300, 350, 350P, Pulser, Vintage, X-Treme® 8VS, 12RC, & 12VS Machines, and Millermatic 22, 50, 60 & 70 Series Feeders and More
- Compatible with Hobart® Beta-MIG 2510 & Olympic VS Machines and More
- Will not fit MX type plugs with small plastic housing (Millermatic 141, 211)
- Mig Star Replacement Parts; Contact Tip: MS1445, Liner: MS44354515, Nozzle: MS24A62, Diffuser: MS54A, Insulator: MS34A, Tube: MS64J60
Attributes
- Amp Rating: 400
- Back End Connection: Compatible with Miller Electric
- Front End Consumables: Compatible with TWECO®
- Length: 25'
Specifications & Compatibility
Performance Specifications
| Specification | Detail |
|---|---|
| Amperage (CO²) | 400A @ 60% Duty Cycle |
| Amperage (Mixed Gas) | 350A @ 60% Duty Cycle |
| Cable Length | 25 ft. |
| Neck Angle | 60° |
| Wire Size | .030"–.045" (0.76–1.43mm) |
| Liner Diameter | .035"–.045" (0.9–1.2mm) |
| Contact Tip | 14-45 (.045") |
| Cooling | Air Cooled |
| Handle | Ergonomic with Hyperflex® Cable System & Spring-Loaded Design |

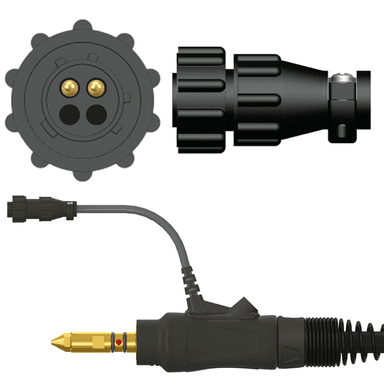

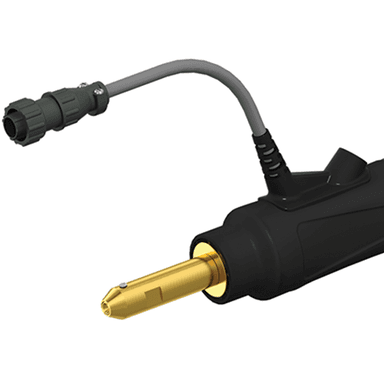

Back-End Compatibility (Machine Connection)
| Brand | Compatible Models |
|---|---|
| Miller® | Cricket, XL, Challenger, Sidekick, Millermatic 90, 120, 130, 135, 140, 150, 175, 180, 185, 190, 200, 210, 212, 250, 250x, 251, 252, 300, 350, 350P, Pulser, Vintage, X-Treme® 8VS, 12RC & 12VS; Millermatic 22, 50, 60 & 70 Series Feeders |
| Hobart® | Beta-MIG 2510, Olympic VS |
| ⚠️ Does NOT fit MX-type plugs with small plastic housing (e.g., Millermatic 141, 211). Verify your machine's connector type before ordering. | |

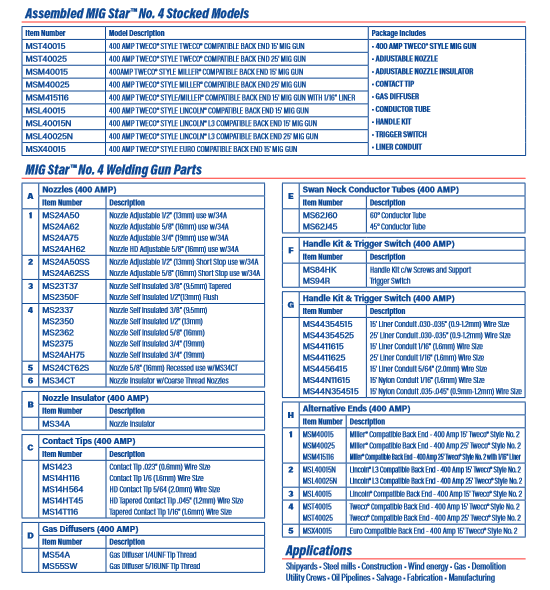

Front-End Consumable Compatibility
| Component | Compatible Standard | Mig Star Part # |
|---|---|---|
| Contact Tip | TWECO® Style | MS1445 |
| Liner | TWECO® Style | MS44354515 |
| Nozzle | TWECO® Style | MS24A62 |
| Diffuser | TWECO® Style | MS54A |
| Insulator | TWECO® Style | MS34A |
| Tube | TWECO® Style | MS64J60 |
What's Included
| Item | Notes |
|---|---|
| MIG Gun (MSM40025) | 25 ft. cable, assembled |
| Contact Tip | MS1445 (.045" — pre-installed) |
| Liner | MS44354515 (pre-installed) |
| Nozzle | MS24A62 (installed) |
⚠️ Verify Before Purchasing: Confirm your welder's connector type matches the Miller-style back-end connection. This gun will not fit MX-type plugs (small plastic housing) found on Millermatic 141 and 211. When in doubt, check your machine's owner's manual or contact us before ordering.
